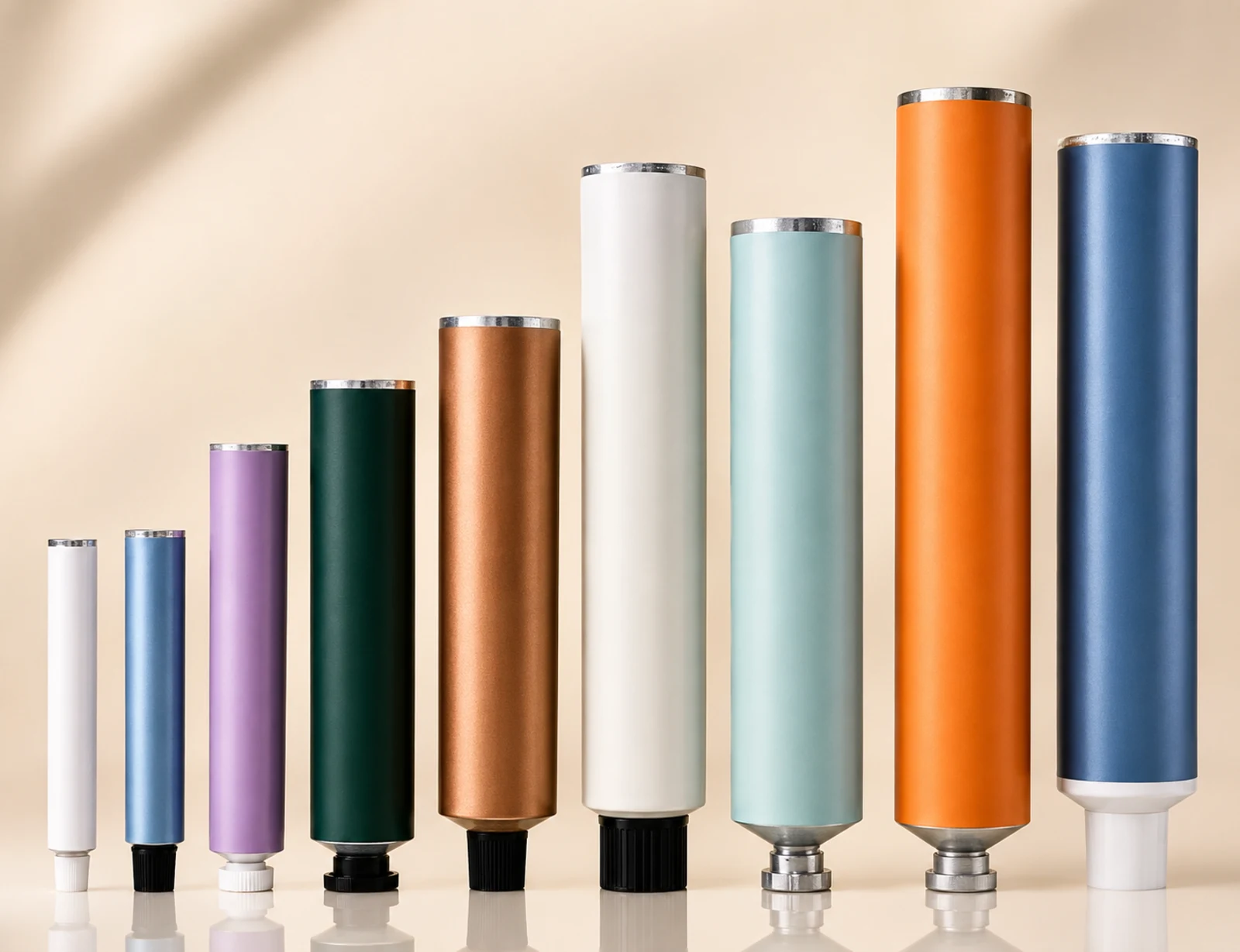

Aluminum Tubes

Our aluminum tubes are available in diameters from 13.5mm to 40mm, with capacities from 5ml to 200ml, offset decoration, broad closure options, and recycled aluminum options featuring up to 100% post-consumer recycled material.

Diameter range
13.5–40mm
Capacity range
5–200ml
Recycled option
Up to 100% PCR

Product specifications

Size & finish chart

DiameterCapacity optionsTube height optionsThreadsCap stylesOffset colors
13.5mm5ml, 7ml60mm, 90mmM7Conical screw cap, ophthalmic cap5
16mm10ml, 13ml80mm, 100mmM7, M9Conical screw cap, ophthalmic cap5
19mm15ml, 20ml90mm, 125mmM7, M9, M11Stand-up cap, conical screw cap, ophthalmic cap5
22mm25ml, 30ml, 35ml100mm, 120mm, 145mmM7, M9, M11Stand-up cap, conical screw cap, ophthalmic cap5–6
25mm40ml, 50ml, 60ml125mm, 150mm, 160mmM9, M11, M13, M15Stand-up cap, conical screw cap, special cap6
28mm50ml, 60ml, 70ml, 75ml125mm, 150mm, 165mm, 170mmM11Stand-up cap, conical screw cap6
30mm50ml, 60ml, 75ml, 80ml, 90ml120mm, 130mm, 155mm, 165mm, 180mmM11, M15Stand-up cap, conical screw cap, octagonal cap, special cap6
31.2mm60ml, 70ml, 75ml, 90ml, 100ml125mm, 145mm, 155mm, 180mm, 185mmM11, M15Stand-up cap, conical screw cap, octagonal cap6
35mm75ml, 100ml, 125ml, 130ml, 140ml125mm, 155mm, 175mm, 187mm, 195mmM11, M13, M15Stand-up cap, conical screw cap, octagonal cap, flip-top, special cap6
40mm100ml, 150ml, 180ml, 190ml, 200ml140mm, 165mm, 190mm, 200mm, 210mmM11, M13, M15Stand-up cap, conical screw cap, octagonal cap, special cap6

Availability & ordering notes

  • Available with up to 100% post-consumer recycled aluminum in every diameter.
  • Excellent barrier protection for light-, air-, and moisture-sensitive formulas.
  • Caps come in PP, HDPE, or MDPE, smooth or ribbed; octagonal caps in gloss PP.
  • Offset and digital printing options are available; closure selection varies by diameter and thread.
  • Contact ABA Packaging for samples, pricing, technical assistance, and decoration support.

Closures

A cap for every product.

Caps come in PP, HDPE, or MDPE, smooth or ribbed, on M7 to M15 threads. The size chart above shows which styles fit each diameter.

Conical screw cap

The classic tapered cap, available on every diameter from 13.5mm to 40mm in smooth or ribbed finishes.

Full-diameter stand-up cap

A wide, flat-topped cap the tube stands on, for shelf presence on 19mm to 40mm tubes.

Octagonal screw cap

A faceted gloss PP cap for a premium look on 30mm, 31.2mm, 35mm, and 40mm tubes.

Ophthalmic & special caps

Elongated-tip caps for precise, small-dose dispensing of eye, nasal, and treatment products on 13.5mm to 22mm tubes, plus special caps on larger sizes.

Flip-top cap

A one-handed screw flip-top with a 3mm or 5mm opening, available on 35mm tubes.

Sealed until first use

Closed-hole tubes have an aluminum membrane across the opening that keeps the contents hermetically sealed until the customer pierces it with the point built into the cap. It’s the standard for pharmaceutical, cosmetic, and food products that must show they haven’t been opened.

Decoration

Offset printing reproduces detailed, high-definition artwork in vivid color, with 5 colors on 13.5–22mm tubes and up to 6 on larger sizes, printed over the whole tube. Digital printing is available for mock-ups, samples, and very small runs, with quick turnaround and accurate color.

Recycled aluminum

Every diameter can be made with up to 100% post-consumer recycled aluminum, cutting the need for new raw material without changing how the tube looks or performs.

Made for regulated products

Production runs on automated lines with quality control at every stage, and processes are validated for the strict requirements of the pharmaceutical and cosmetic industries.

Artwork guide

Setting up your print file

  • Your artwork width is the tube’s circumference (diameter × 3.14), split into a front and a back panel.
  • Keep text 2mm away from the top edge and from the seam where the print wraps around; background color can run into those areas.
  • Leave the folding area at the end of the tube free of text, since it’s crimped shut after filling.
  • We’ll send the exact template for your size with your quote.
DiameterArtwork widthFolding area
13.5mm42mm16mm
16mm50mm16mm
19mm59.5mm16mm
22mm69mm20mm
25mm78mm20mm
28mm88mm24mm
30mm94mm24mm
31.2mm98mm24mm
35mm110mm24mm
40mm125mm24mm

Customization

Make your products look their best.

Because we are a complete packaging company, all our components can be customized through such services as acid etching, ceramic decorating, metalizing and hot stamping.
